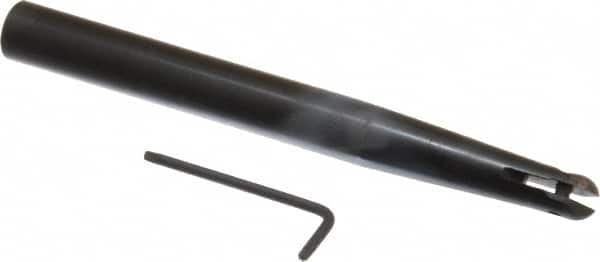

Minicut International - 1/2" Cut Diam, 3/8" Max Depth of Cut, 5/8" Shank Diam, 6" OAL, Indexable Ball Nose End Mill - 2.312" Head Length, Straight Shank, BNMI Toolholder, BNSI 0500 Insert
Item #: 84775311
Brand: Minicut International
Model #: BNMI-1663-20TN
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1/2 |
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | BNSI 0500 |
| Toolholder Style | BNMI |
| Series | Megamill |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.2810 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| Tapered Neck | Yes |
| Head Length (Decimal Inch) | 2.3120 |
| Neck Diameter (Decimal Inch) | 0.4400 |
