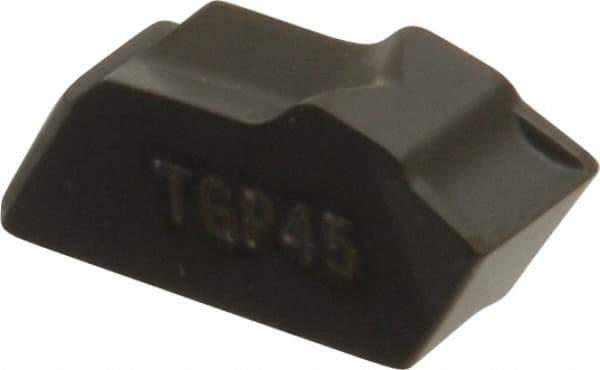

Seco - 150.104 12 TGP45 Grade, 0.161" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, 0.009" Cnr Rad, TiCN/Al2O3 Coated, Single End
Item #: 84764430
Brand: Seco
Model #: 42533
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 150.10 |
| Insert Size | 4 |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (Decimal Inch) | 0.1610 |
| Material Grade | C5 |
| Manufacturer's Grade | TGP45 |
| Coating | TiCN/Al2O3 |
| Series | 150.10 |
| Chipbreaker | 12 |
| Maximum Depth of Cut (mm) | 3.00 |
| Coating Process | CVD |
| Overall Length (Decimal Inch) | 0.3540 |
| Corner Radius (Decimal Inch) | 0.0090 |
| Insert Holding Method | Clamp |
| Insert Seat Size | 4 |
| Width Tolerance | ±0.003 |
