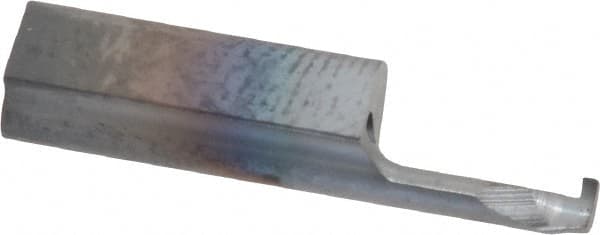

HORN - 0.028" Groove Width, 0.118" Min Hole Diam, 0.315" Max Hole Depth, Grooving Grooving Tool - 0.024" Projection, 0.984" OAL, Solid Carbide, TiCN Finish
Item #: 84696780
Brand: HORN
Model #: R105007013T125
Exact Tooling IR#: 04
Features and Benefits
Grooving tools are used for recessing or undercutting a workpiece.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear-resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Grooving Tool Type | Grooving |
| Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.0750 |
| Groove Width (Decimal Inch) | 0.0280 |
| Projection (Decimal Inch) | 0.0240 |
| Minimum Hole Diameter (Decimal Inch) | 0.1180 |
| Maximum Hole Depth (Decimal Inch) | 0.3150 |
| Overall Length (Decimal Inch) | 0.9840 |
| Finish/Coating | TiCN |
| Manufacturer Grade | TI25 |
