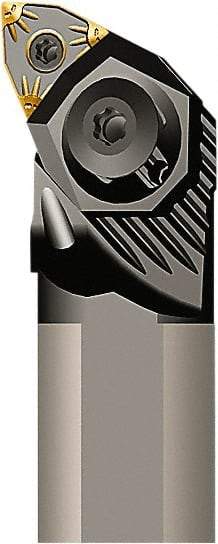

Seco - 25mm Min Bore Diam, 180mm OAL, 20mm Shank Diam, A-PWLN Indexable Boring Bar - 27mm Max Bore Depth, WN.. 0604.. Insert, Pin Lock Assembly Holding Method
Item #: 84672948
Brand: Seco
Model #: 36892
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-PWLN |
| Series | Pin Lock |
| Minimum Bore Diameter (mm) | 25.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.9843 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 27.00 |
| Maximum Bore Depth (Decimal Inch) | 1.0630 |
| Overall Length (mm) | 180.00 |
| Overall Length (Decimal Inch) | 7.0866 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Compatibility | WN.. 0604.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Pin Lock Assembly |
| Rake | Negative |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 13.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5118 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Insert Inscribed Circle (mm) | 9.52 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
| Rake Angle | -5 |
| Complete Insert Compatibility | WNGA 060408S-02020-L1-C; WNGA 060408S25-02020-L1-C; WNGG 060402-MF1; WNMA 060408; WNMA 060412; WNMG 060402-M3; WNMG 060404-FF2; WNMG 060404-M3; WNMG 060404-MF1; WNMG 060404-MF2; WNMG 060404-MF4; WNMG 060404-MF5; WNMG 060404W-FF2; WNMG 060404W-MF2; WNMG 06 |
| Toolholder Material | Steel |
