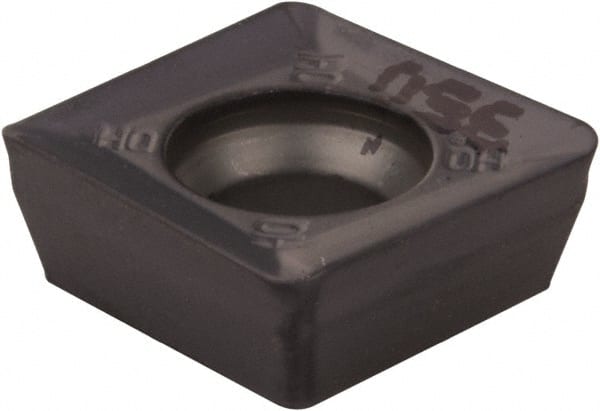

SPMT 100408TR-HQ-M 950 Carbide Milling Insert TiAlN Finish, 0.1665″ Thick x 0.4016″ Wide
Item #: 84641331
Brand: Iscar
Model #: 5603697
Product Specifications
| Insert Style | SPMT |
| Insert Size Code | 100408 |
| Insert Size | 100408 |
| Insert Material | Solid Carbide |
| Material Grade | C3; C5; C6; C1; C2 |
| Manufacturer Grade | IC950 |
| Inscribed Circle (Decimal Inch) | 0.4016 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Decimal Inch) | 0.0276 |
| Corner Radius (mm) | 0.70 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Insert Hand | Right Hand |
| Relief Angle | 11.00 |
| Series | HELIQUAD |
| Coating Process | PVD |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Iso Code | SPMT 100408TR-HQ-M |
| Standards | ISO 13399 |
| Chip Breaker | HQ |
| Shape | Square |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.4016 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1665 |
