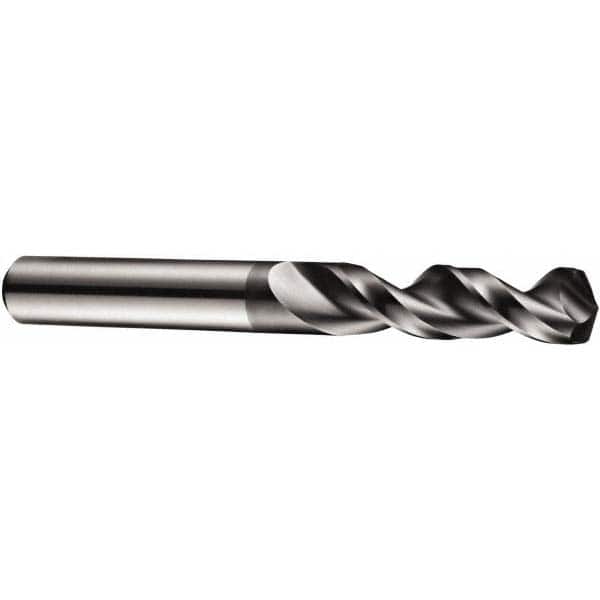

Screw Machine Length Drill Bit: 0.3748″ Dia, 130 °, Cobalt AlCrN Finish, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series A921
Item #: 84637388
Brand: DORMER
Model #: 5972708
Product Specifications
| Drill Bit Size (Inch) | 3/8 |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | AlCrN |
| Drill Point Angle | 130 |
| Flute Type | Parabolic |
| Point Type | PFX |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3748 |
| Drill Bit Size (Decimal Inch) | 0.3748 |
| Overall Length (mm) | 79.00 |
| Overall Length (Decimal Inch) | 3.1126 |
| Shank Diameter (mm) | 9.52 |
| Series | A921 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | 0.000 to -0.022 mm |
| Flute Length (Decimal Inch) | 1.8124 |
| Flute Length (mm) | 46.00 |
| Drill Bit Size Range (Decimal Inch) | 0.3500 to 0.4000 |
| Specification Designation | DIN; ANSI |
