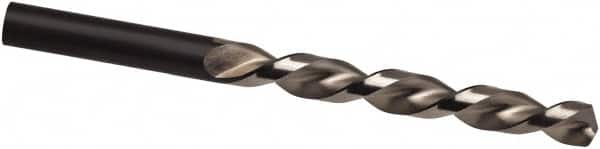

Jobber Length Drill Bit: 0.3661″ Dia, 130 °, High Speed Steel Bright/Uncoated, Left Hand Cut, Parabolic Flute
Item #: 84617471
Brand: Guhring
Model #: 9005500093000
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.3661 |
| Drill Bit Size (mm) | 9.30 |
| Drill Bit Material | High Speed Steel |
| Cutting Direction | Left Hand |
| Drill Bit Finish/Coating | Bright |
| Drill Point Angle (Degrees) | 130 |
| Spiral Type | Regular |
| Flute Type | Parabolic |
| Point Type | Cone Relief |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3661 |
| Overall Length (mm) | 125.00 |
| Flute Length (mm) | 81.00 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 9.30 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.3500 - 0.4000 |
| Drill Bit Size Range (mm) | 9.00 - 10.00 |
| Specification Designation | DIN |
