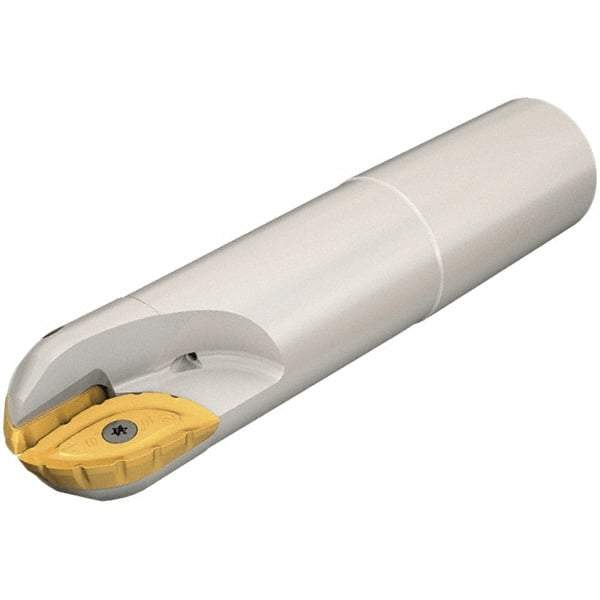

Iscar - 1-1/2" Cut Diam, 1.33" Max Depth of Cut, 1-1/4" Shank Diam, 6.37" OAL, Indexable Ball Nose End Mill - 3-1/2" Head Length, Straight Shank, BCM Toolholder, BCR... Insert
Item #: 84582402
Brand: Iscar
Model #: 3103056
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/2 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 1.3300 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | BCR... |
| Toolholder Style | BCM |
| Series | DropMill |
| Overall Length (Decimal Inch) | 6.3700 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 3.5000 |
