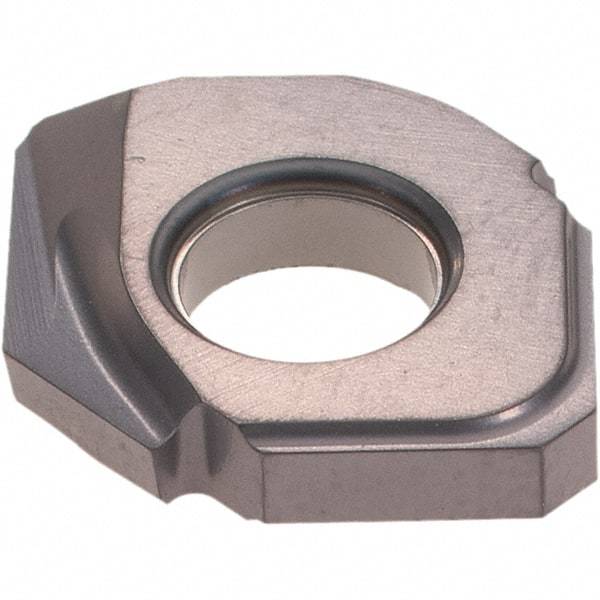

Iscar - HCDD124-090 QF Grade IC908 Carbide Milling Insert - TiAlN Finish, 0.1024" Thick, 0.4882" Inscribed Circle
Item #: 84564855
Brand: Iscar
Model #: 5604253
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HCD |
| Insert Size | D124-090 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Inscribed Circle (Decimal Inch) | 0.4882 |
| Thickness (Decimal Inch) | 0.1024 |
| Coating Process | PVD |
| Shape | Pentagon |
| Chipbreaker | QF |
| Maximum Depth of Cut (mm) | 5.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.2008 |
| ISO Number | HCD D124-090-QF |
