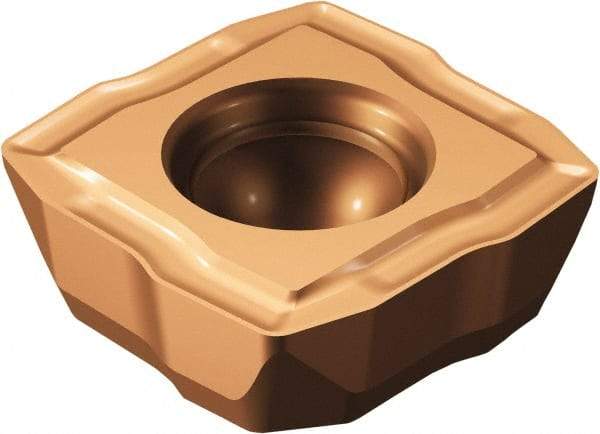

Sandvik Coromant - 88005C GM Grade 1044 Carbide Indexable Drill Insert - TiAlN Finish, Square, 8.4mm Inscribed Circle
Item #: 84526219
Brand: Sandvik Coromant
Model #: 5765749
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | 880 |
| Insert Size | 05C |
| Material | Carbide |
| Manufacturer's Grade | 1044 |
| Inscribed Circle (mm) | 8.40 |
| Inscribed Circle (Decimal Inch) | 0.3307 |
| Thickness (mm) | 3.00 |
| Thickness (Decimal Inch) | 0.1181 |
| Corner Radius (mm) | 0.50 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Shape | Square |
| Width (Decimal Inch) | 0.3307 |
| Width (mm) | 8.40 |
| Length (mm) | 8.40 |
| Length (Decimal Inch) | 0.3307 |
| Hole Diameter (mm) | 3.20 |
| Hole Diameter (Decimal Inch) | 0.1260 |
| Coating | TiAlN |
| Coating Process | PVD |
| Chipbreaker | GM |
