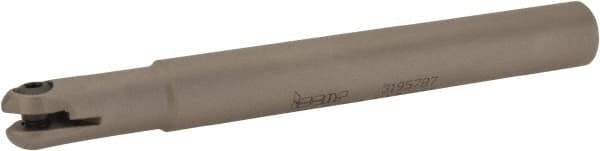

Iscar - 1/2" Cut Diam, 1/2" Shank Diam, 4.7" OAL, Indexable Ball Nose End Mill - 1.2" Head Length, Straight Shank, HCM D.50 Toolholder, HBF D.50, HBR D.50, HCR D.50 Insert
Item #: 84394857
Brand: Iscar
Model #: 3103599
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1/2 |
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | HBF D.50; HBR D.50; HCR D.50 |
| Toolholder Style | HCM D.50 |
| Series | BallPlus |
| Overall Length (Decimal Inch) | 4.7000 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Number of Flutes | 1 |
| Head Length (Decimal Inch) | 1.2000 |
| Neck Diameter (Decimal Inch) | 0.4170 |
