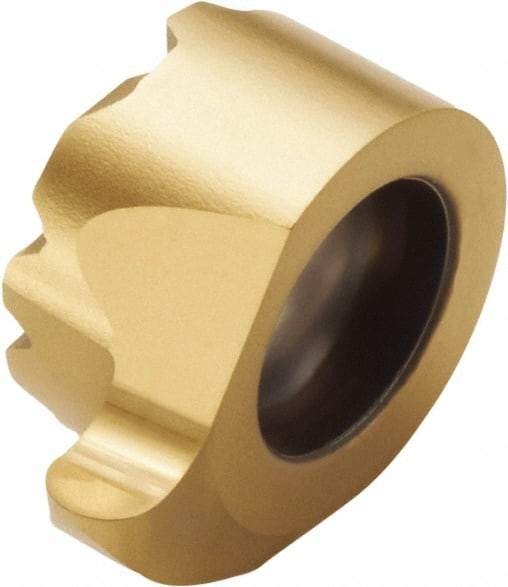

Seco - LCEX110506 R Grade CP500 Carbide Turning Insert - TiAlN/TiN Finish, 90° Irregular, 0.024" Corner Radius
Item #: 84389386
Brand: Seco
Model #: 00216
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LCEX |
| Insert Size | 110506 |
| Material | Carbide |
| Length (Decimal Inch) | 0.4210 |
| Corner Radius (Decimal Inch) | 0.0240 |
| Manufacturer's Grade | CP500 |
| Coating | TiAlN/TiN |
| Material Grade | Micrograin |
| Chip Breaker | R |
| Rake Angle | 0 |
| Coating Process | PVD |
| Included Angle | 90 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1020 |
| Insert Holding Method | Screw |
| Shape | Irregular |
