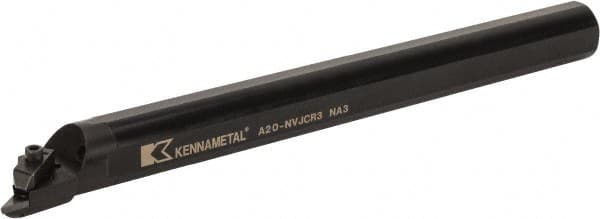

Kennametal - VP.., 3° Lead Angle A-NVJC Internal Right Hand Indexable Profiling Toolholder - 1-1/4" Shank Width, 14" Long, Steel, Through Coolant
Item #: 84312263
Brand: Kennametal
Model #: 1150802
Exact Tooling IR#: 04
Features and Benefits
Steel is a commonly used material as an econmical alternative for short-run jobs and its ability to be altered for a specific task.
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Rake | Neutral |
| Insert Compatibility | VP.. |
| Toolholder Style | A-NVJC |
| Series | Top Notch Profiling Boring Bar |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Shank Width/Diameter (mm) | 31.75 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Overall Length (Inch) | 14 |
| Overall Length (Decimal Inch) | 14.0000 |
| Overall Length (mm) | 355.60 |
| Insert Holding Method | Clamp |
| Rake Angle | 0 |
| Lead Angle | 3 |
| Minimum Hole Diameter (mm) | 45.06 |
| Minimum Hole Diameter (Decimal Inch) | 1.7740 |
| Center to Cutting Edge (Decimal Inch) | 0.7650 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Complete Insert Compatibility | VP.. 332 |
