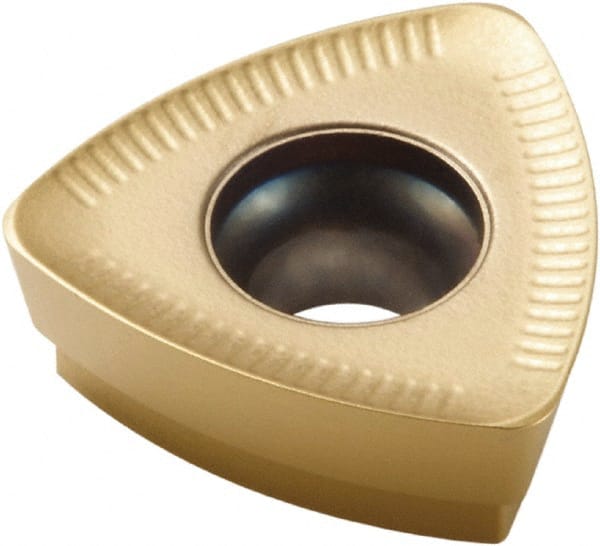

218.19-125TT3ME07 F40M Carbide Milling Insert TiAlN/TiN Finish, 0.156″ Thick
Item #: 84310150
Brand: Seco
Model #: 00023602
Product Specifications
| Insert Style | 218.19 |
| Insert Size Code | 218.19-125 |
| Insert Size | 125 |
| Insert Material | Solid Carbide |
| Material Grade | C5 |
| Manufacturer Grade | F40M |
| Inscribed Circle (Decimal Inch) | 0.3500 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Insert Hand | Neutral |
| Relief Angle | 12.00 |
| Coating Process | PVD |
| Number Of Cutting Edges | 3 |
| Rake | Positive |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; M; N |
| Iso Code | 218.19-125T-T3-ME07 |
| Standards | ISO |
| Rake Angle | 20.00 |
| Chip Breaker | ME07 |
| Shape | Trigon |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1560 |
