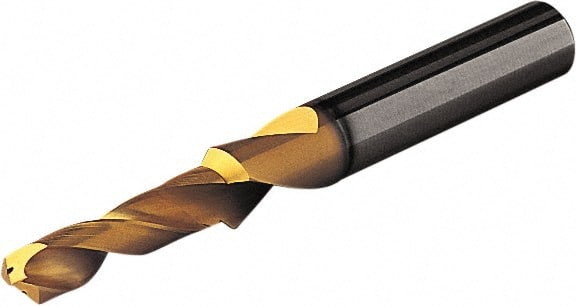

Screw Machine Length Drill Bit: 0.2677″ Dia, 140 °, Solid Carbide Multilayer TiAlN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series SD203A
Item #: 84125467
Brand: Seco
Model #: 02500328
Product Specifications
| Drill Bit Size (mm) | 6.80 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multilayer TiAlN |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Drill Bit Size (Decimal Inch) | 0.2677 |
| Overall Length (mm) | 89.00 |
| Overall Length (Decimal Inch) | 3.5039 |
| Shank Diameter (mm) | 10.00 |
| Series | SD203A |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 0.8268 |
| Maximum Drilling Depth (mm) | 21.00 |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.00 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.006 to +0.021 mm |
| Flute Length (Decimal Inch) | 1.9291 |
| Flute Length (mm) | 49.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| Drill Bit Size Range (mm) | 6.50 to 8.00 |
| Specification Number | DIN 6537A |
| Specification Designation | DIN |
