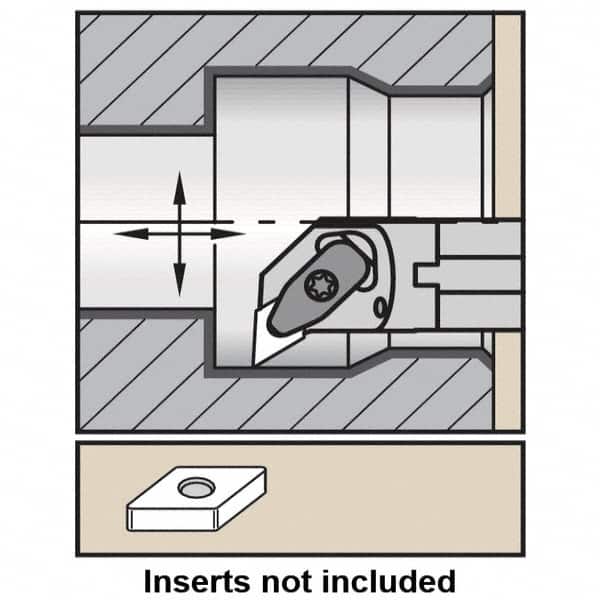

Kennametal - 40mm Min Bore Diam, 250mm OAL, 32mm Shank Diam, A-DDUN-KC Indexable Boring Bar - DN.. Insert, Clamp Holding Method
Item #: 83961136
Brand: Kennametal
Model #: 2441945
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-DDUN-KC |
| Series | Kenclamp |
| Minimum Bore Diameter (mm) | 40.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.5748 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2600 |
| Insert Compatibility | DN.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Lead Angle | 3 |
| Center to Cutting Edge (mm) | 22.00 |
| Insert Thickness (Inch) | 1/4 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Rake Angle | 6 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | DN.. 150608 |
| Toolholder Material | Steel |
