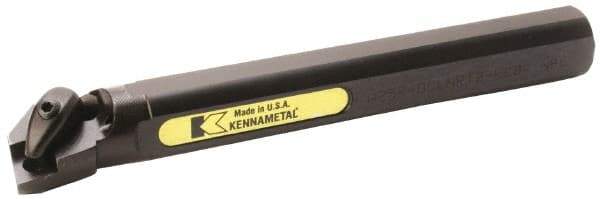

Kennametal - 32mm Min Bore Diam, 200mm OAL, 63/64" Shank Diam, A-DCLN-KC Indexable Boring Bar - CN.. Insert, Clamp Holding Method
Item #: 83960856
Brand: Kennametal
Model #: 2441867
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-DCLN-KC |
| Series | Kenclamp |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Inch) | 63/64 |
| Shank Diameter (Decimal Inch) | 0.9840 |
| Insert Compatibility | CN.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (mm) | 17.00 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Rake Angle | 5 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | CN.. 120408 |
| Toolholder Material | Steel |
