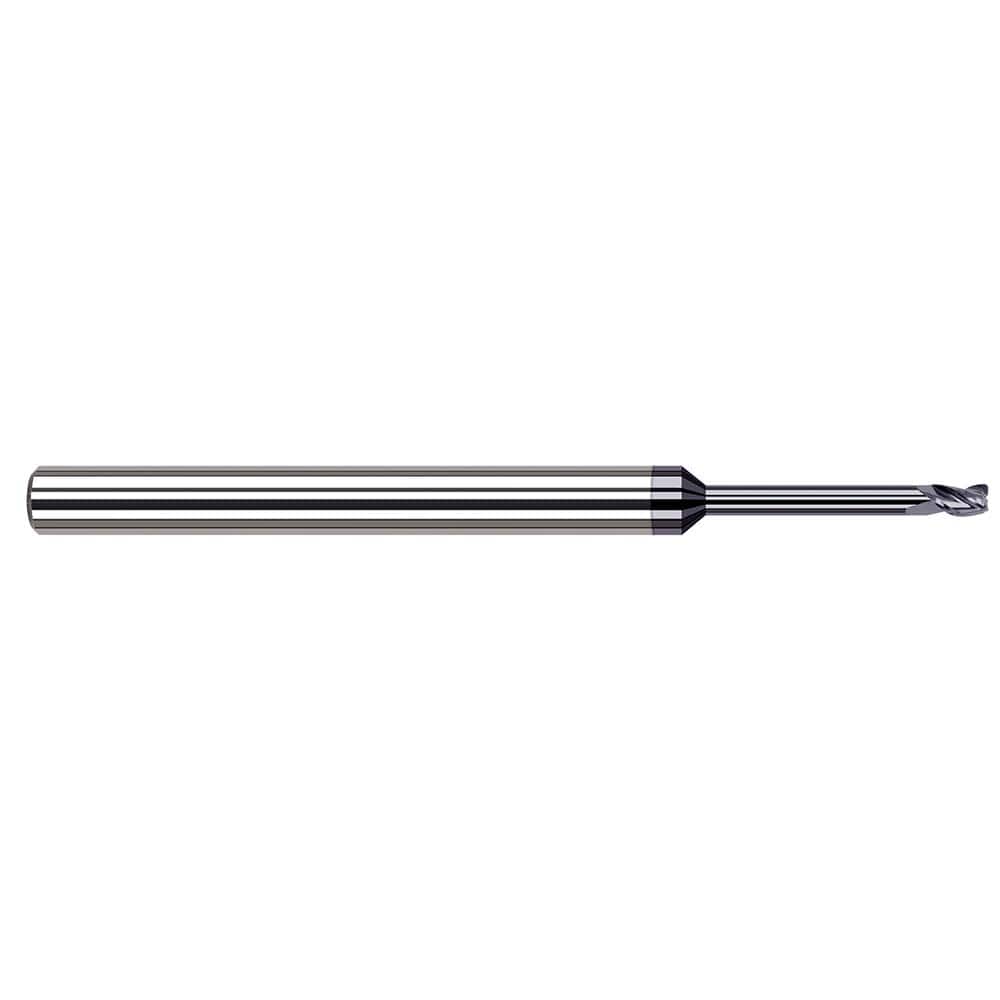

Harvey Tool - Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 0.50 ; Mill Diameter (Decimal Inch): 0.0200 ; End Type: Corner Radius ; Corner Radius (mm): 0.10 ; Corner Radius (Decimal Inch): 0.0040 ; Number of Flutes: 3
Item #: 83956110
Brand: Harvey Tool
Model #: 55020-C3
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 0.50 ; Mill Diameter (Decimal Inch): 0.0200 ; End Type: Corner Radius ; Corner Radius (mm): 0.10 ; Corner Radius (Decimal Inch): 0.0040 ; Number of Flutes: 3
| Mill Diameter (mm) | 0.50 |
| Mill Diameter (Decimal Inch) | 0.0200 |
| End Type | Corner Radius |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Decimal Inch) | 0.0300 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 2-1/2 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 37 |
| Variable Helix | Yes |
| Reach Length (Decimal Inch) | 0.1600 |
| Single or Double End | Single |
| Centercutting | Center Cutting |
| Flute Direction | Right Hand |
| Series/List | Variable Helix End Mills for Medium Alloy Steels - Corner Radius - Long Reach, Stub Flute |
