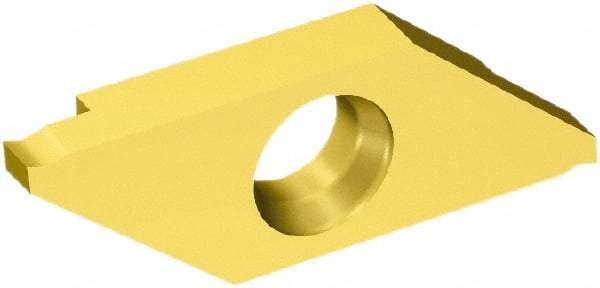

Sandvik Coromant - 3MAG MAG Grade 1025, 0.5mm Cutting Width Carbide Grooving Insert - 1.3mm Max Depth of Cut, Left Hand, 0.05mm Corner Radius, TiAlN/TiN Finish - Benchmark Tooling

Sandvik Coromant - 3MAG MAG Grade 1025, 0.5mm Cutting Width Carbide Grooving Insert - 1.3mm Max Depth of Cut, Left Hand, 0.05mm Corner Radius, TiAlN/TiN Finish


Item #: 83880609
Brand: Sandvik Coromant
Model #: 5735415
Exact Tooling IR#: 04

Features and Benefits

Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Product Specifications
Insert Style MAG
Insert Size 3
Material Carbide
Cutting Width (mm) 0.50
Cutting Width (Decimal Inch) 0.0197
Maximum Depth of Cut (mm) 1.30
Maximum Depth of Cut (Decimal Inch) 0.0512
Manufacturer's Grade 1025
Coating TiAlN/TiN
Cutting Direction Left Hand
Insert Hand Left Hand
Cutting Height (mm) 3.18
Cutting Height (Inch) 1/8
Cutting Height (Decimal Inch) 0.1250
Relief Angle 6
Insert Seat Size 3
Chipbreaker MAG
Multi-Use Tool Yes
Multi-Use Application Parting; Grooving; Slitting; Slotting; Plunging
Minimum Corner Radius (Decimal Inch) 0.0012
Maximum Corner Radius (Decimal Inch) 0.0028
Corner Radius (mm) 0.05
Corner Radius (Decimal Inch) 0.0020
Coating Process PVD
Overall Length (mm) 12.02
Overall Length (Decimal Inch) 0.4732
Series CoroCut XS
Rake Angle 0
Rake Neutral
ISO Number MAGL 3 050 1025
Manufacturers Catalog Number MAGL 3 050 1025
Overall Width (mm) 0.50
Overall Width (Decimal Inch) 0.0197
Insert Thickness (Decimal Inch) 0.1250
$56.73
