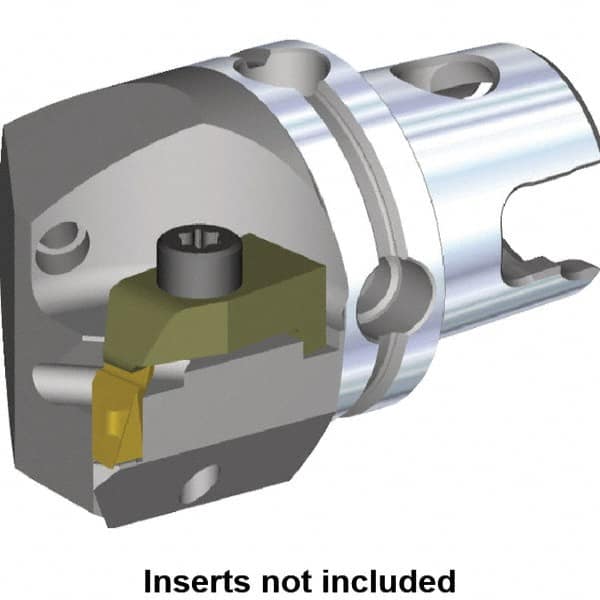

Kennametal - NU3L Insert, 50mm Head Length, Modular Grooving Cutting Unit Head - Right Hand Cut, System Size KM50, Through Coolant, Series Top Notch
Item #: 83868562
Brand: Kennametal
Model #: 3753587
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM50 |
| Series Name | Top Notch |
| Cutting Direction | Right Hand |
| Modular Head Style | Cutting Head |
| Insert Style | NU3L |
| Head Length/Projection (mm) | 50.00 |
| Head Length/Projection (Decimal Inch) | 1.9685 |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Minimum Hole Diameter (mm) | 70.00 |
| Minimum Hole Diameter (Decimal Inch) | 2.7559 |
| Complete Insert Compatibility | NU3L |
