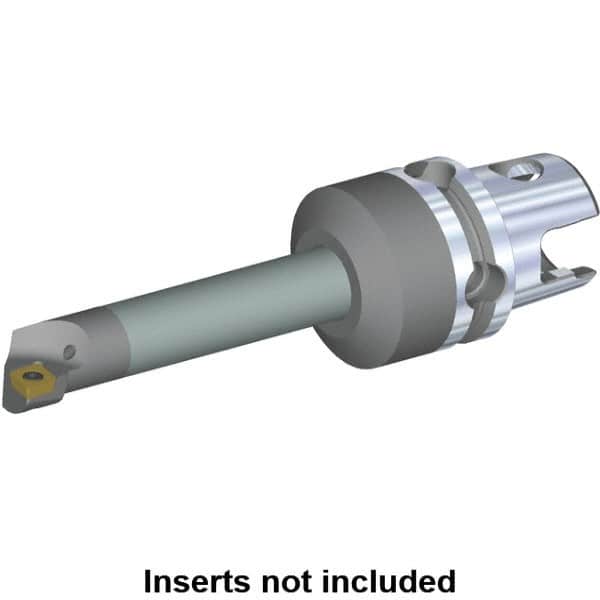

Kennametal - Right Hand Cut, 13mm Min Bore Diam, Size KM50 Carbide Modular Boring Cutting Unit Head - 1.9685" Max Bore Depth, Through Coolant, Compatible with CP..
Item #: 83868539
Brand: Kennametal
Model #: 3789876
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM50 |
| Series Name | KM Micro |
| Minimum Bore Diameter (mm) | 13.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.5118 |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (mm) | 50.00 |
| Maximum Bore Depth (Decimal Inch) | 1.9685 |
| Insert Style | CP.. |
| Head Length/Projection (mm) | 80.00 |
| Head Length/Projection (Decimal Inch) | 3.1496 |
| Insert Holding Method | Screw |
| Toolholder Material | Carbide |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (mm) | 7.00 |
| Center to Cutting Edge (Decimal Inch) | 0.2756 |
| Neck Diameter (mm) | 10.00 |
| Neck Diameter (Decimal Inch) | 0.3937 |
| Complete Insert Compatibility | CP..2151; CP..060204 |
