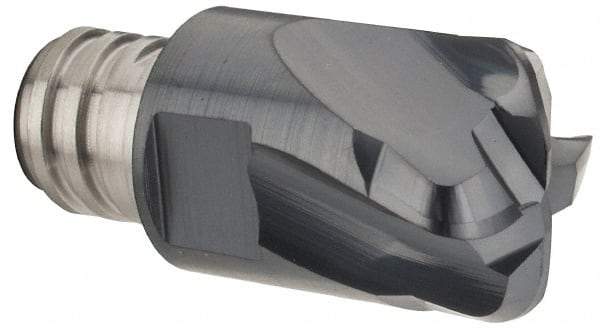

Iscar - MM EFF Grade IC903 Carbide End Milling Tip Insert - AlTiN Finish, 4 Flutes, 12mm Cutting Diam, 0.6mm Depth of Cut, 16.5mm Extension, 0.0972" Cnr Rad
Item #: 83859652
Brand: Iscar
Model #: 5606817
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
AlTiN is one of the most abrasive-resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Series | FeedMill; Multimaster |
| Milling Tip Style | MM EFF |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 12.00 |
| Cutting Diameter (Decimal Inch) | 0.4724 |
| Manufacturer's Grade | IC903 |
| Depth of Cut (mm) | 0.60 |
| Depth of Cut (Decimal Inch) | 0.0236 |
| Number of Flutes | 4 |
| Coating | AlTiN |
| Milling Tip Full Description | End Mill |
| Corner Radius (Decimal Inch) | 0.0972 |
| Coating Process | PVD |
| Extension From Holder (mm) | 16.50 |
| Extension From Holder (Decimal Inch) | 0.6496 |
| Thread Size | T08 |
