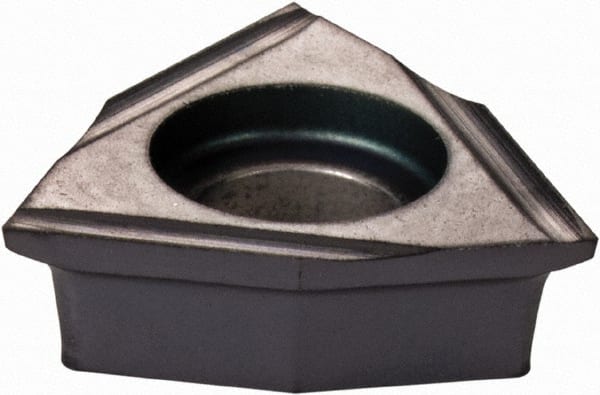

WPEX050300R08 IP908 Carbide Turning Insert Uncoated, 5mm Long, 5/16″ Inscribed Circle, 1/8″ Thick, 80° Trigon, Series Isoturn
Item #: 83790436
Brand: Iscar
Model #: 5506016
Product Specifications
| Insert Style | WPEX |
| Insert Shape Code | W |
| Insert Size Code | 050300 |
| Insert Shape | Trigon |
| Clearance Code | P |
| Tolerance Code | E |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC08 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.71 |
| Hole Diameter (Decimal Inch) | 0.1460 |
| Maximum Depth of Cut (mm) | 2.49 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Inscribed Circle (Inch) | 5/16 |
| Inscribed Circle (mm) | 7.95 |
| Inscribed Circle (Decimal Inch) | 0.3130 |
| Insert Holding Method | Screw |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Included Angle | 80.0 |
| Relief Angle | 8 |
| Series | Isoturn |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Insert Length (Decimal Inch) | 0.1970 |
| Insert Length (mm) | 5.00 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Iso Code | WPEX 050300R08 |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | WPEX 050300R08 |
| Cutting Direction | Right Hand |
| Material Grade | Fine Grain |
| Chip Breaker | X |
| Multi-Use Tool | No |
| Coating/Finish | Uncoated |
 | |
| MSC Part # | 83790436 |
| Mfr Part # | 5506016 |
