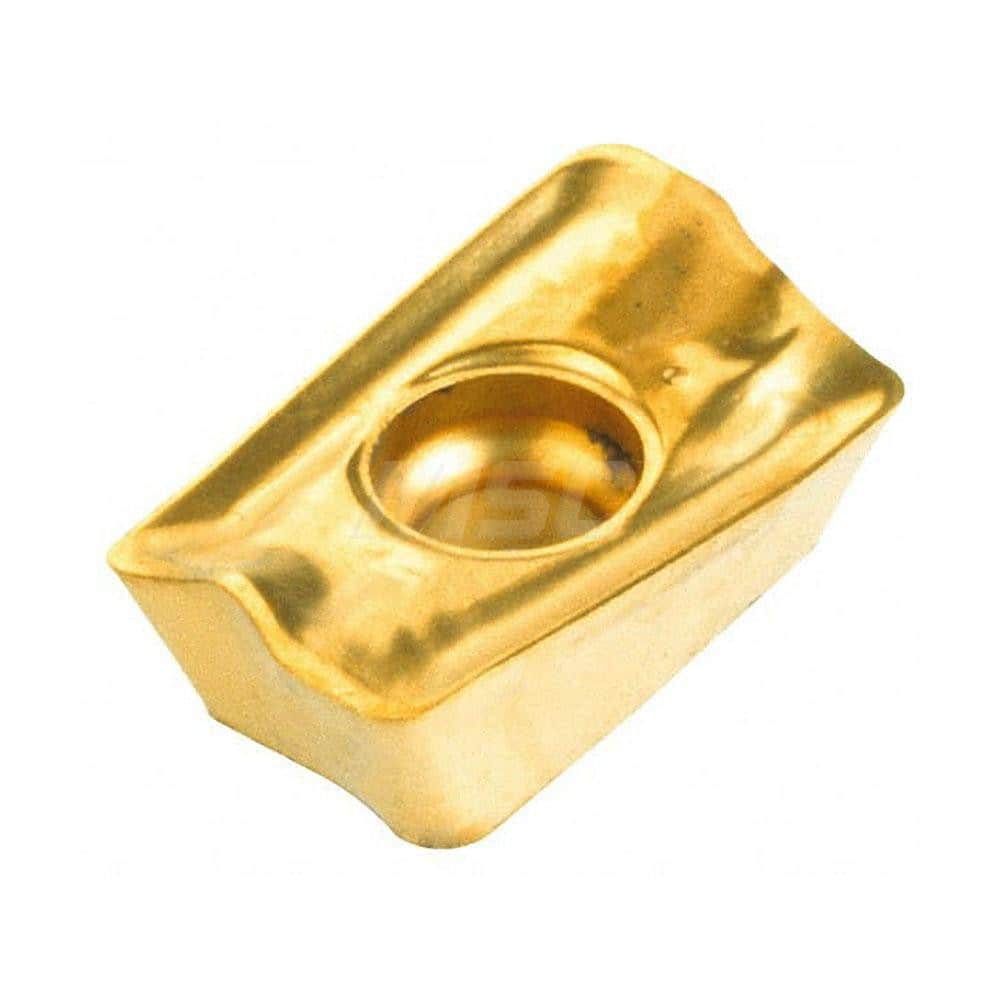

HM90APKT100304PDR28 Carbide Milling Insert Uncoated, 0.404″ Long x 0.139″ Thick x 0.2661″ Wide
Item #: 83788810
Brand: Iscar
Model #: 5602961
Product Specifications
| Insert Style | HM90 APKT |
| Insert Size Code | 100304 |
| Insert Size | 100304 |
| Insert Material | Solid Carbide |
| Material Grade | C5; C6 |
| Manufacturer Grade | IC28 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.40 |
| Length Range (Decimal Inch) | 0.4000 to 0.4500 |
| Insert Hand | Right Hand |
| Relief Angle | 11.00 |
| Series | HELI2000 |
| Coating Process | Uncoated |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 8.00 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Rectangle |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Iso Code | HM90 APKT 100304PDR |
| Standards | ISO 13399 |
| Chip Breaker | PDR |
| Shape | Parallelogram |
| Coating/Finish | Uncoated |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.2661 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1390 |
| Length (Decimal Inch - 4 Decimals) | 0.4040 |
