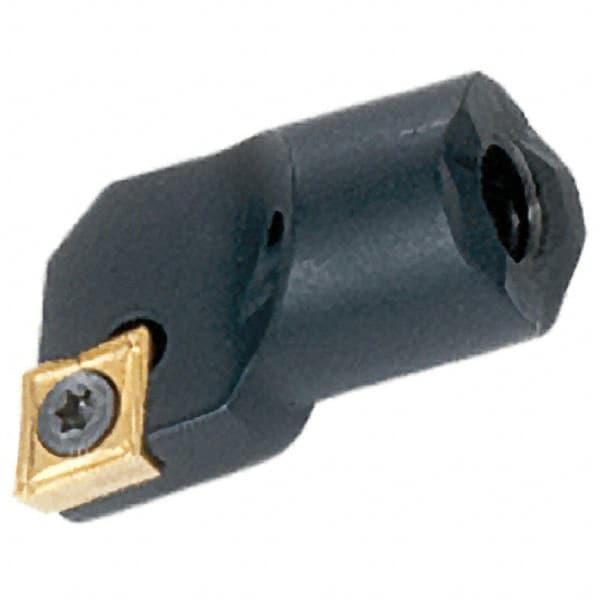

Iscar - Size 10-3, 0.787" Min Diam, 1.17" Max Depth, Right Hand Modular Boring Cutting Unit Head
Item #: 83720839
Brand: Iscar
Model #: 3602216
Product Specifications
| System Size | 10-3 |
| Series Name | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 0.7870 |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.1700 |
| Insert Style | CCET-WF; CCGT-AF; CCGT-AS; CCGW/CCMW-M2 (CBN); CCMT (CBN); CCMT (PCD); CCMT-14; CCMT-PF; CCMT-WG; CCMT/CCGT; CCMT/CCGT-SM |
| Head Length/Projection (Decimal Inch) | 1.1700 |
| Insert Holding Method | Screw |
| Toolholder Material | Carbide |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (Decimal Inch) | 0.4300 |
| Head Diameter Excluding Insert (Decimal Inch) | 0.6250 |
| Complete Insert Compatibility | CCMT 3-0; CCMT 3-1; CCMT 3-1-14; CCMT 3-2; CCMT 3-2-14 |
