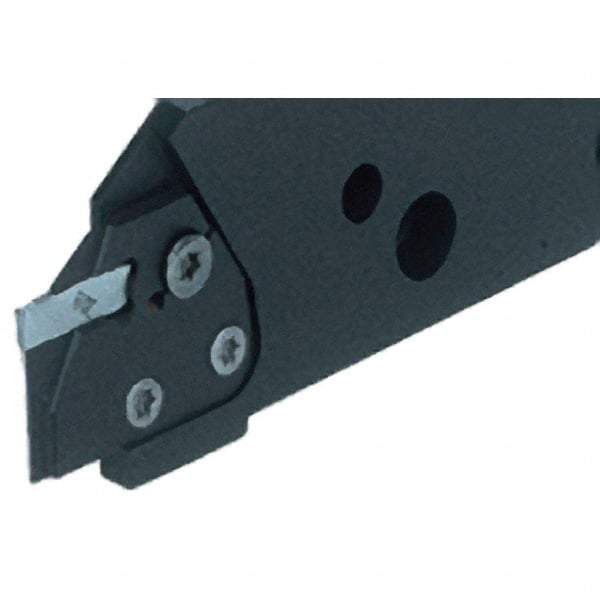

Iscar - 115mm OAL, Left Hand Indexable Grooving Cutoff Toolholder - 42mm Shank Height x 35.2mm Shank Width, DG.. Insert Style, DGHAL Toolholder Style, Series Do-Grip
Item #: 83685370
Brand: Iscar
Model #: 2391641
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Overall Length (Decimal Inch) | 4.5276 |
| Overall Length (mm) | 115.00 |
| Series | Do-Grip |
| Toolholder Style | DGHAL |
| Insert Compatibility | DG.. |
| Shank Height (mm) | 42.00 |
| Shank Height (Decimal Inch) | 1.6535 |
| Shank Width/Diameter (mm) | 35.20 |
| Shank Width/Diameter (Decimal Inch) | 1.3858 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Head Height (mm) | 16.00 |
| Head Height (Decimal Inch) | 0.6299 |
| Complete Insert Compatibility | DGL 2200JS-15D; DGL 2200JS-6D; DGL 2202C-6D; DGL 2202J-6D; DGN 2002C; DGN 2002JT; DGN 2200JS; DGN 2202C; DGN 2202J; DGN 2202JT; DGN 2202LF; DGN 2502C; DGR 2200JS-15D; DGR 2200JS-6D; DGR 2202C-6D |
