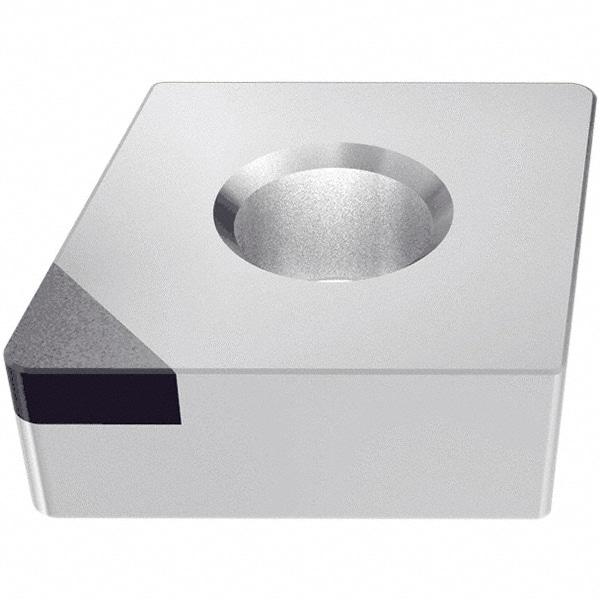

Iscar - CNMA431 Grade IB90 CBN Turning Insert - 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 83685230
Brand: Iscar
Model #: 5700462
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | CNMA |
| Insert Size | 431 |
| Material | CBN |
| Length (mm) | 12.90 |
| Length (Decimal Inch) | 0.5079 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | IB90 |
| Relief Angle | 0 |
| Included Angle | 80 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 0.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
