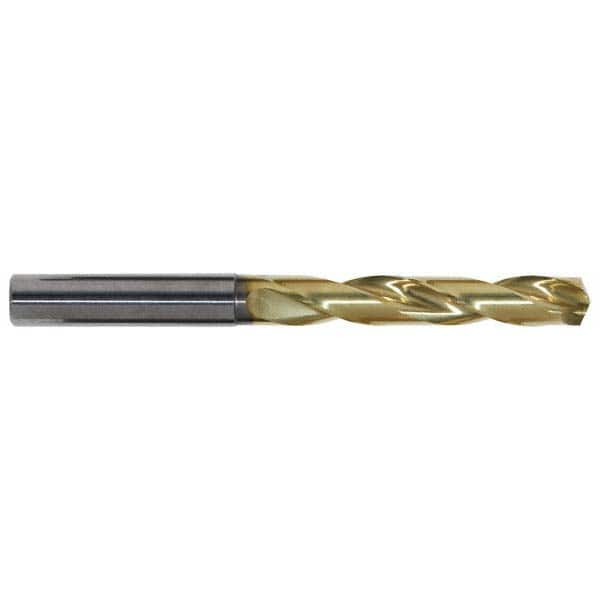

Jobber Length Drill Bit: 0.2244″ Dia, 140 °, Solid Carbide TiN Finish, 3.23″ OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 83283218
Brand: Guhring
Model #: 9016620057000
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2244 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiN |
| Drill Point Angle (Degrees) | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | SF |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Overall Length (Decimal Inch) | 3.2300 |
| Flute Length (Decimal Inch) | 1.7300 |
| Shank Diameter (mm) | 6.00 |
| Drill Bit Diameter Tolerance | 0.004 to 0.016 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Specification Number | DIN 6537L |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Material Grade | Submicron |
| Specification Designation | DIN |
