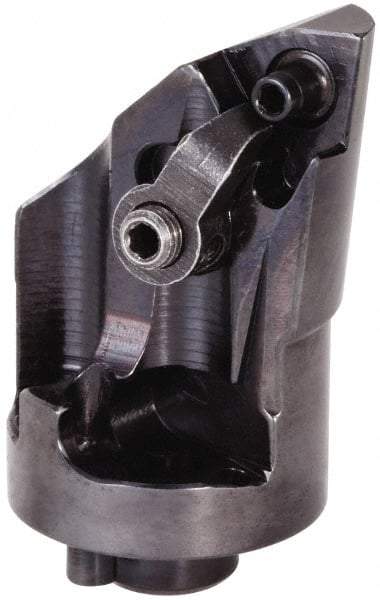

Kennametal - Left Hand Cut, 30.48mm Min Bore Diam, Size H16 Modular Boring Cutting Unit Head - Compatible with WN..
Item #: 83212993
Brand: Kennametal
Model #: 1096482
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | H16 |
| Series Name | Kenloc |
| Minimum Bore Diameter (mm) | 30.48 |
| Minimum Bore Diameter (Decimal Inch) | 1.2000 |
| Cutting Direction | Left Hand |
| Insert Style | WN.. |
| Head Length/Projection (mm) | 41.28 |
| Head Length/Projection (Decimal Inch) | 1.6250 |
| Head Length/Projection (Inch) | 1-5/8 |
| Insert Holding Method | Screw or Clamp |
| Center to Cutting Edge (mm) | 16.26 |
| Center to Cutting Edge (Decimal Inch) | 0.6400 |
| Head Diameter Excluding Insert (mm) | 25.40 |
| Head Diameter Excluding Insert (Inch) | 1 |
| Head Diameter Excluding Insert (Decimal Inch) | 1.0000 |
| Complete Insert Compatibility | WN.. 332 |
