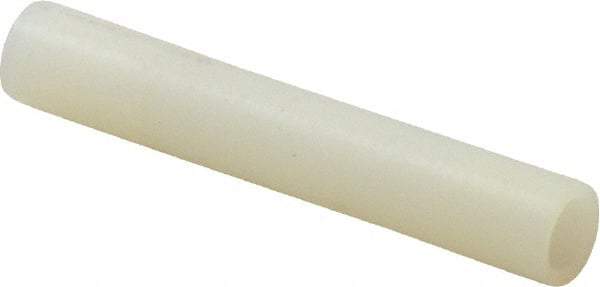

Electro Hardware - 0.171" ID x 1/4" OD, #8 Screw, Grade 101 Nylon Female Unthreaded Circuit Board Spacer - Round Body, Uncoated, 1-1/2" OAL
Item #: 83208702
Brand: Electro Hardware
Model #: S593M17F16H
Exact Tooling IR#: 04
Features and Benefits
Female unthreaded circuit board spacers do not have threads and resemble a plain, cylindrical tube. They are the most common type of spacer.
Nylon is a lightweight, nonconductive material resistant to impact, wear and abrasion. It is ideal for electrical applications or where corrosion is a concern.
| Product Specifications | |
|---|---|
| Type | Female Unthreaded |
| Material | Nylon |
| System of Measurement | Inch |
| Body Shape | Round |
| Screw Size | #8 |
| Outside Diameter (Decimal Inch) | 0.2500 |
| Outside Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 1-1/2 |
| Inside Diameter (Decimal Inch) | 0.171 |
| Finish/Coating | Uncoated |
| Material Grade | Grade 101 |
| Inside Diameter Tolerance (Decimal Inch) | 0.000 to 0.010 |
| Length Tolerance (Decimal Inch) | -0.005 to 0.005 |
| Fastener Standard | MIL-P-17091B |
