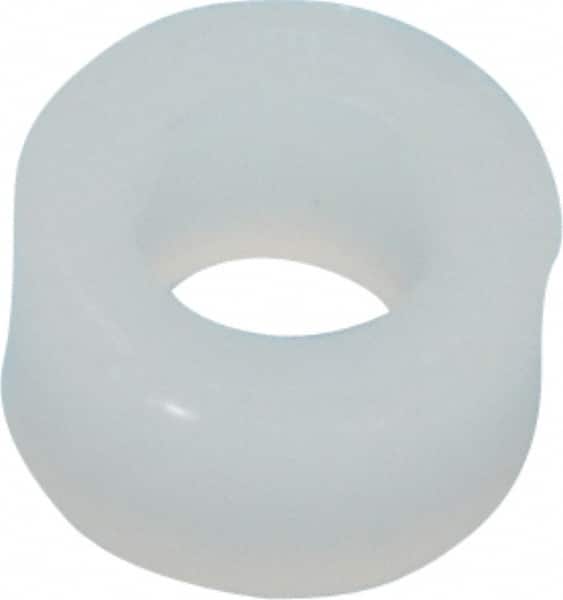

Electro Hardware - 0.141" ID x 1/4" OD, #6 Screw, Grade 101 Nylon Female Unthreaded Circuit Board Spacer - Round Body, Uncoated, 1/8" OAL
Item #: 83083808
Brand: Electro Hardware
Model #: S505M17F16G
Exact Tooling IR#: 04
Features and Benefits
Female unthreaded circuit board spacers do not have threads and resemble a plain, cylindrical tube. They are the most common type of spacer.
Nylon is a lightweight, nonconductive material resistant to impact, wear and abrasion. It is ideal for electrical applications or where corrosion is a concern.
| Product Specifications | |
|---|---|
| Type | Female Unthreaded |
| Material | Nylon |
| System of Measurement | Inch |
| Body Shape | Round |
| Screw Size | #6 |
| Outside Diameter (Decimal Inch) | 0.2500 |
| Outside Diameter (Inch) | 1/4 |
| Overall Length (Decimal Inch) | 0.1250 |
| Overall Length (Inch) | 1/8 |
| Inside Diameter (Decimal Inch) | 0.141 |
| Finish/Coating | Uncoated |
| Material Grade | Grade 101 |
| Inside Diameter Tolerance (Decimal Inch) | 0.000 to 0.010 |
| Length Tolerance (Decimal Inch) | -0.005 to 0.005 |
| Fastener Standard | MIL-P-17091B |
