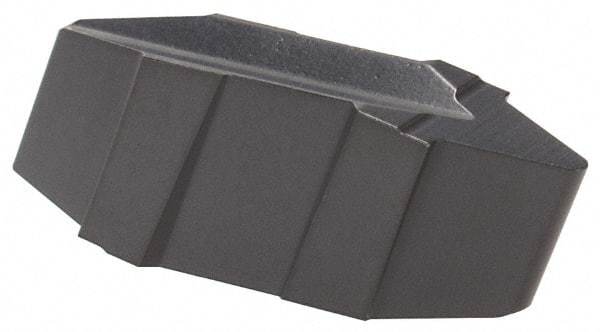

Iscar - 43561GPV Grade IC428, 4.03mm Cutting Width Carbide Grooving Insert - 3.42mm Max Depth of Cut, Neutral, 0.45mm Corner Radius, Al2O3 Finish
Item #: 83038786
Brand: Iscar
Model #: 6402700
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GPV |
| Insert Size | 43561 |
| Material | Carbide |
| Cutting Width (mm) | 4.03 |
| Cutting Width (Decimal Inch) | 0.1587 |
| Maximum Depth of Cut (mm) | 3.42 |
| Maximum Depth of Cut (Decimal Inch) | 0.1346 |
| Material Grade | C3/C4 |
| Manufacturer's Grade | IC428 |
| Coating | Al2O3 |
| Insert Hand | Neutral |
| Relief Angle | 5 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.45 |
| Corner Radius (Decimal Inch) | 0.0177 |
| Coating Process | CVD |
| Overall Length (mm) | 15.30 |
| Overall Length (Decimal Inch) | 0.6024 |
