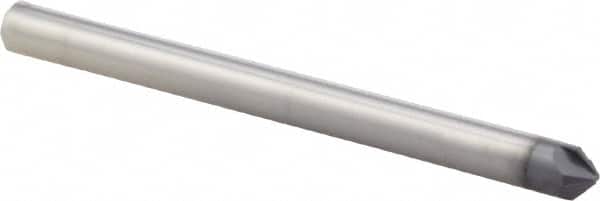

Iscar - 3/64" Diam 4 Flute Single End Solid Carbide Chamfer Mill
Item #: 91120535
Brand: Iscar
Model #: 5621196
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics, and other tough-to-machine materials. It is commonly used in high performance applications.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Cutter Head Diameter (Inch) | 3/64 |
| Included Angle A | 90 |
| Chamfer Mill Material | Solid Carbide |
| Chamfer Mill Finish/Coating | TiAlN |
| Overall Length (Inch) | 2-7/64 |
| Shank Diameter (Inch) | 5/32 |
| Number of Flutes | 4 |
| End Type | Single |
| Length of Cut (Decimal Inch) | 0.0610 |
| Cutting Direction | Right Hand |
| Tool Application | Chamfering; Countersinking |
| Material Application | Alloys; Carbon Steel; Hard Alloys; Stainless Steel |
