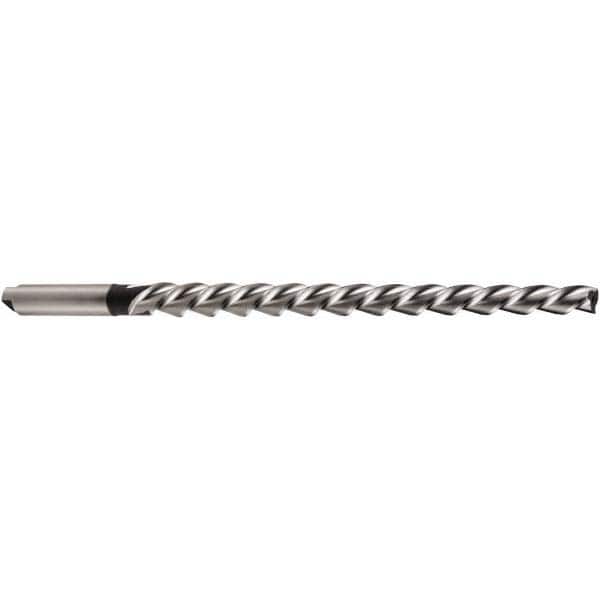

DORMER - 1.5mm Pin, 0.0843" Diam, 0.0552" Small End, 2.1mm Diam Tanged Shank, 37mm Flute, Taper Pin Reamer
Item #: 65641748
Brand: DORMER
Model #: 0141069
Features and Benefits
Helical flute reamers are used for reaming taper pin holes in blind and through-hole operations. These flutes are designed with a high spiral construction for reduced chip packing.
| Product Specifications | |
|---|---|
| Taper Pin Size (mm) | 1.50 |
| Small End Diameter (mm) | 1.40 |
| Small End Diameter (Decimal Inch) | 0.0552 |
| Reamer Diameter (mm) | 2.14 |
| Reamer Diameter (Decimal Inch) | 0.0843 |
| Flute Type | Helical |
| Shank Type | Tanged |
| Overall Length (mm) | 70 |
| Flute Length (mm) | 37 |
| Number of Flutes | 2 |
| Shank Diameter (mm) | 2.10 |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Reamer Material | Cobalt |
| Reamer Finish/Coating | Bright |
| Material Application | Alloy Steel; Aluminum; Aluminum Alloys; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Copper Alloys; Free Machining Stainless Steel; Hardened Steel; Magnesium; Nickel |
| Material Application2 | Stainless Steel; Steel; Structural Steel; Thermosetting Plastics; Titanium; Titanium Alloys |
