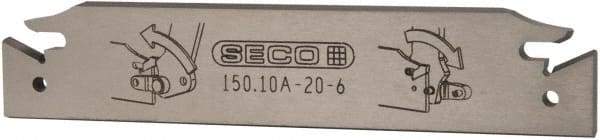

Seco - 0.843" Blade Height, 0.222" Blade Width, 4.72" OAL, Neutral Cut, Double End Indexable Cut-Off Blade - 150.10A Blade, 150.10 Series
Item #: 82742347
Brand: Seco
Model #: 33048
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Neutral |
| Blade Height (Decimal Inch) | 0.8430 |
| Blade Width (Decimal Inch) | 0.2220 |
| Blade Overall Length (Decimal Inch) | 4.7200 |
| Blade Style | 150.10A |
| Insert Width (Decimal Inch) | 0.2500 |
| Series | 150.10 |
| Insert Seat Size | 6 |
| Tool Block/Toolholder Style | 150.10-20 |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Inch) | 4 |
| Maximum Workpiece Diameter (Decimal Inch) | 4.0000 |
| Cutting Height (Decimal Inch) | 0.8430 |
| Insert Corner Radius (Decimal Inch) | 0.0120 |
| Complete Insert Compatibility | 150.10-6.. |
| Complete Tool Block/Toolholder Style Compatibility | 150.10-...-20 |
