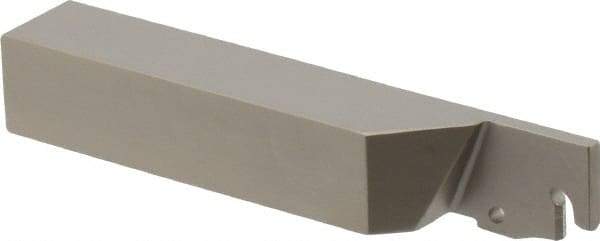

Iscar - External Thread, 1" Max Depth of Cut, 0.146" Min Groove Width, 4-1/2" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 3/4" Shank Height x 3/4" Shank Width, TAG Insert Style, TGT Toolholder Style, Series Tang-GripIQ
Item #: 82736257
Brand: Iscar
Model #: 2301854
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Minimum Groove Width (Decimal Inch) | 0.1460 |
| Maximum Groove Width (Decimal Inch) | 0.1770 |
| Overall Length (Decimal Inch) | 4.5000 |
| Series | Tang-GripIQ |
| Toolholder Style | TGT |
| Insert Compatibility | TAG |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Head Height (Decimal Inch) | 0.8200 |
| Complete Insert Compatibility | TAG L4C-4D; TAG L4J-4D; TAG N4C; TAG N4CB; TAG N4J; TAG N4JT; TAG N4M; TAG N4UT; TAG N4W; TAG R4C-4D; TAG R4J-4D |
