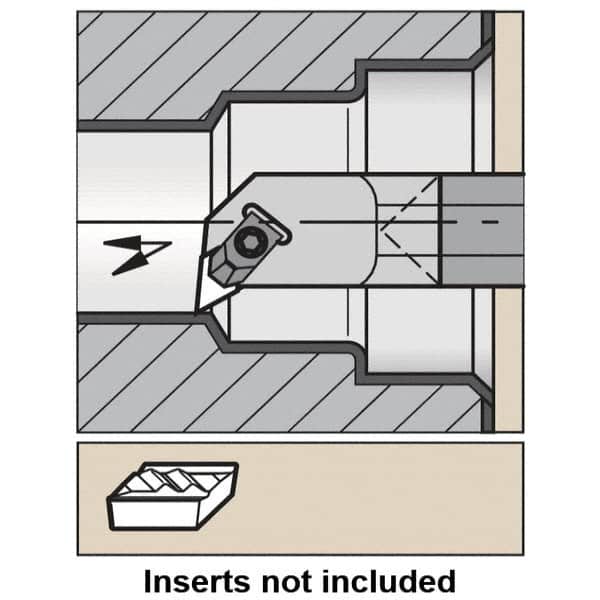

Kennametal - KC.., 5° Lead Angle E-NKLC Internal Right Hand Indexable Profiling Toolholder - 16mm Shank Width, 200mm Long, Carbide, Through Coolant
Item #: 82699877
Brand: Kennametal
Model #: 1152826
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications due to its high hardness and minimal flexing.
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Rake | Neutral |
| Insert Compatibility | KC.. |
| Toolholder Style | E-NKLC |
| Series | Top Notch Profiling Boring Bar |
| Toolholder Material | Carbide |
| Through Coolant | Yes |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Overall Length (Decimal Inch) | 7.8740 |
| Overall Length (mm) | 200.00 |
| Insert Holding Method | Clamp |
| Rake Angle | 0 |
| Lead Angle | 5 |
| Minimum Hole Diameter (mm) | 20.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.7870 |
| Center to Cutting Edge (mm) | 11.00 |
| Complete Insert Compatibility | KC.. 110308L |
