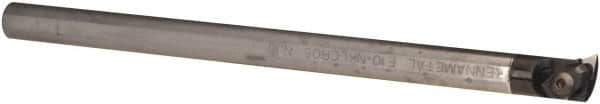

Kennametal - NP.., 5° Lead Angle E-NKLC Internal Right Hand Indexable Profiling Toolholder - 5/8" Shank Width, 10" Long, Carbide, Through Coolant
Item #: 82699794
Brand: Kennametal
Model #: 1152602
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications due to its high hardness and minimal flexing.
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Rake | Neutral |
| Insert Compatibility | NP.. |
| Toolholder Style | E-NKLC |
| Series | Top Notch Profiling Boring Bar |
| Toolholder Material | Carbide |
| Through Coolant | Yes |
| Shank Width/Diameter (mm) | 15.88 |
| Shank Width/Diameter (Inch) | 5/8 |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Inch) | 10 |
| Overall Length (Decimal Inch) | 10.0000 |
| Overall Length (mm) | 254.00 |
| Insert Holding Method | Clamp |
| Rake Angle | 0 |
| Lead Angle | 5 |
| Minimum Hole Diameter (mm) | 22.86 |
| Minimum Hole Diameter (Decimal Inch) | 0.9000 |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 5/8 |
| Coolant Hole Diameter (Decimal Inch) | 0.2180 |
| Complete Insert Compatibility | NP.. 51L |
