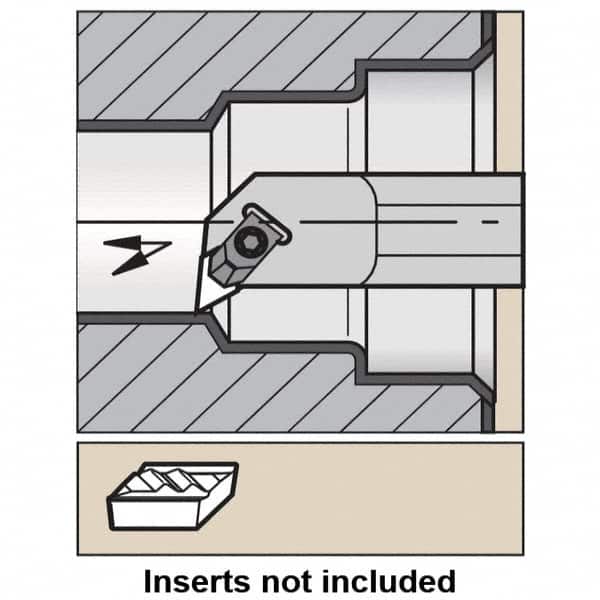

Kennametal - KC.., 5° Lead Angle A-NKLC Internal Right Hand Indexable Profiling Toolholder - 32mm Shank Width, 250mm Long, Steel, Through Coolant
Item #: 82699695
Brand: Kennametal
Model #: 1098975
Exact Tooling IR#: 04
Features and Benefits
Steel is a commonly used material as an econmical alternative for short-run jobs and its ability to be altered for a specific task.
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Rake | Neutral |
| Insert Compatibility | KC.. |
| Toolholder Style | A-NKLC |
| Series | Top Notch Profiling Boring Bar |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Width/Diameter (Decimal Inch) | 1.2598 |
| Overall Length (Decimal Inch) | 9.8425 |
| Overall Length (mm) | 250.00 |
| Insert Holding Method | Clamp |
| Rake Angle | 0 |
| Lead Angle | 5 |
| Minimum Hole Diameter (mm) | 40.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.5750 |
| Center to Cutting Edge (mm) | 22.00 |
| Complete Insert Compatibility | KC.. 110305L |
