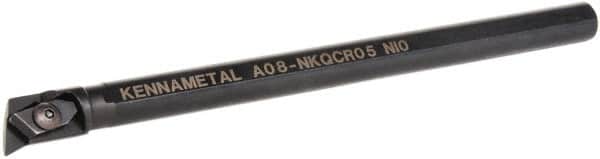

Kennametal - NP.., 17.5° Lead Angle A-NKQC Internal Right Hand Indexable Profiling Toolholder - 1/2" Shank Width, 8" Long, Steel, Through Coolant
Item #: 82699471
Brand: Kennametal
Model #: 1095915
Exact Tooling IR#: 04
Features and Benefits
Steel is a commonly used material as an econmical alternative for short-run jobs and its ability to be altered for a specific task.
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Rake | Neutral |
| Insert Compatibility | NP.. |
| Toolholder Style | A-NKQC |
| Series | Top Notch Profiling Boring Bar |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Shank Width/Diameter (mm) | 12.70 |
| Shank Width/Diameter (Inch) | 1/2 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Inch) | 8 |
| Overall Length (Decimal Inch) | 8.0000 |
| Overall Length (mm) | 203.20 |
| Insert Holding Method | Clamp |
| Rake Angle | 0 |
| Lead Angle | 17.5 |
| Minimum Hole Diameter (mm) | 17.02 |
| Minimum Hole Diameter (Decimal Inch) | 0.6700 |
| Center to Cutting Edge (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 5/8 |
| Coolant Hole Thread Size (Inch) | 1/16-27 NPT |
| Complete Insert Compatibility | NP.. 51L |
