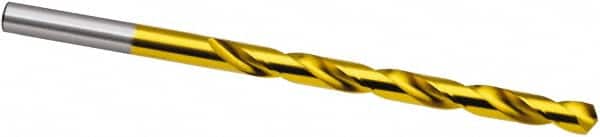

Taper Length Drill Bit: 0.2500″ Dia, 118 ° Coated, RH Cut, Spiral Flute, Cylindrical Shank, Series 667
Item #: 82677493
Brand: Guhring
Model #: 9006670063500
Product Specifications
| Drill Bit Size (Inch) | 1/4 |
| Drill Bit Size (Letter) | E |
| Tool Material | High Speed Steel |
| Coating/Finish | Coated |
| Flute Length (mm) | 97.00 |
| Shank Type | Cylindrical |
| Point Type | Cone Relief |
| Flute Type | Spiral |
| Coolant Through | No |
| Drill Point Angle (Degrees) | 118 |
| Overall Length (mm) | 148.00 |
| Shank Diameter (mm) | 6.35 |
| Drill Bit Size (Decimal Inch) | 0.2500 |
| Flute Length x Diamter Ratio | 10xD |
| Cutting Direction | Right Hand |
| Series | 667 |
| Flute Length X Diameter Ratio | 10xD |
| Maximum Drilling Depth (Decimal Inch) | 3.4440 |
| Maximum Drilling Depth (mm) | 87.48 |
| Shank Length (mm) | 51.00 |
| Drill Bit Diameter Tolerance | h8 |
| Tool Performance | General Purpose |
| Web Thinning | Web-Thinned |
| Threaded Shank | No |
| Standards | DIN 340 |
| Spiral Type | Regular |
| Material Grade | M-2 |
