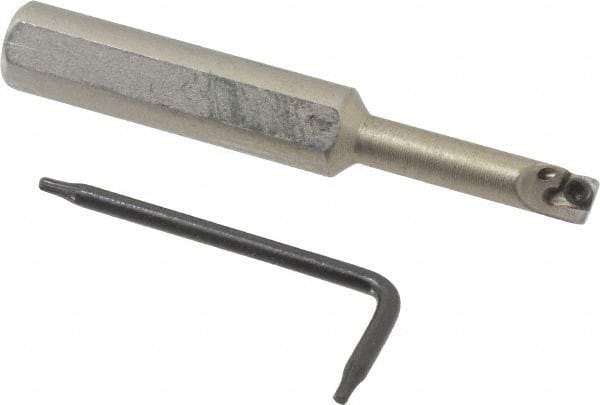

Hertel - 0.23" Min Bore Diam, 2-1/2" OAL, 3/8" Shank Diam, HBBC Indexable Boring Bar - 1" Max Bore Depth, CD.. Insert, Screw Holding Method
Item #: 82554015
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | HBBC |
| Minimum Bore Diameter (Decimal Inch) | 0.2300 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Inch) | 1 |
| Maximum Bore Depth (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 2-1/2 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Compatibility | CD.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
