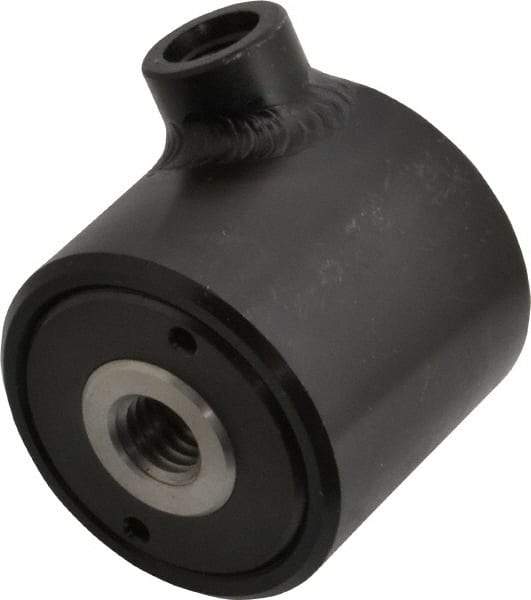

Jergens - 100 to 5,000 psi, 4,800 Lb Max Output, 1/2-13 Hole, 7/16-20 Port, 10-32 Bolt Hole, Hollow Rod Clamp Cylinder - 0.96 Sq In, 0.3 Cu In, 0.24" Stroke Length, 1-15/16" OD, 1-13/16" Overall Height, 3/4" Port Height, 1/2" Port Length
Item #: 82511452
Brand: Jergens
Model #: 60414
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Action Type | Pull; Push |
| Hole Type | Tapped Hole |
| Operating Stroke Length (Decimal Inch) | 0.2400 |
| Operating Volume (Cu. In.) | 0.30 |
| Effective Piston Area (Sq. In.) | 0.96 |
| Maximum Operating Pressure (psi) | 5000.00 |
| Minimum Operating Pressure (psi) | 100.00 |
| Maximum Output Force (Lb.) | 4800.00 |
| Hole Thread Size | 1/2-13 |
| Stroke Diameter (Inch) | 7/8 |
| Outside Diameter (Inch) | 1-15/16 |
| Bolt Hole Thread Size | 10-32 |
| Distance Between Bolt Hole Centers (Inch) | 1-5/8 |
| Overall Height (Inch) | 1-13/16 |
| Port Height (Inch) | 3/4 |
| Port Length (Inch) | 1/2 |
| Port Thread Size | 7/16-20 |
