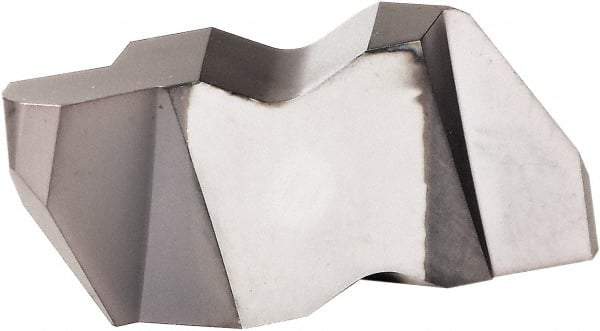

Kennametal - 3094NU Grade KCU25, 2.39mm Cutting Width Carbide Grooving Insert - 3.18mm Max Depth of Cut, Left Hand, 0.51mm Corner Radius, AlTiN Finish
Item #: 82474255
Brand: Kennametal
Model #: 4033883
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NU |
| Insert Size | 3094 |
| Material | Carbide |
| Cutting Width (mm) | 2.39 |
| Cutting Width (Decimal Inch) | 0.0941 |
| Maximum Depth of Cut (mm) | 3.18 |
| Maximum Depth of Cut (Decimal Inch) | 0.1252 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 8.74 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Lead Angle | 45 |
| Insert Seat Size | 3 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Undercutting |
| Corner Radius (mm) | 0.51 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Coating Process | PVD |
| Series | Top Notch |
| Overall Width (mm) | 4.95 |
| Overall Width (Decimal Inch) | 0.1950 |
| Included Angle | 90 |
