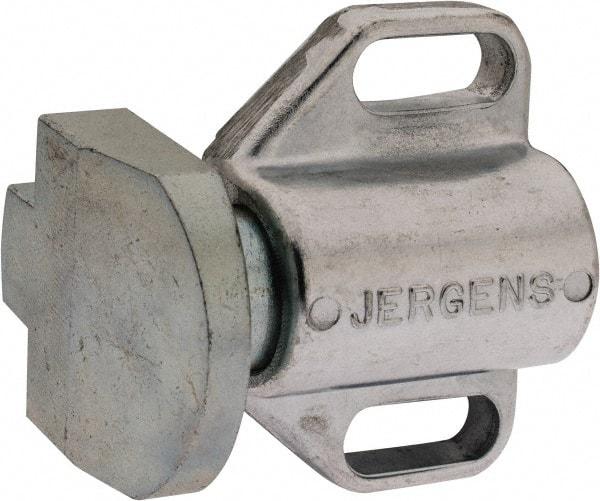

Jergens - 2" Body Width x 1-3/8" Body Len, 1/4" Stroke Len, 1-1/2" Btw Mt Hole Ctrs, Tang Square Spring Locating Stop - 32 Lb Mid End Force, 1-1/4" Stop Head Width x 1-1/2" Stop Head Height
Item #: 82436080
Brand: Jergens
Model #: 36106
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Stop Head Width (Inch) | 1-1/4 |
| Stop Head Width (Decimal Inch) | 1.2500 |
| Stroke Length (Decimal Inch) | 0.2500 |
| Stroke Length (Inch) | 1/4 |
| Base Width (Inch) | 2 |
| Body Length (Inch) | 1-3/8 |
| Body Length (Decimal Inch) | 1.3750 |
| Stop Head Height (Inch) | 1-1/2 |
| Stop Head Height (Decimal Inch) | 1.5000 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.5000 |
| Distance Between Mount Hole Centers (Inch) | 1-1/2 |
| Tang Profile | Tang |
| Middle End Force (Lb.) | 32.00 |
| Middle End Force (kg) | 14.51 |
| Tang Width (Inch) | 1/2 |
| Tang Width (Decimal Inch) | 0.5000 |
| Tang Length (Decimal Inch) | 0.3281 |
| Tang Length (Inch) | 21/64 |
| Stop Head Thickness (Inch) | 3/8 |
| Stop Head Thickness (Decimal Inch) | 0.3750 |
| Body Width (Inch) | 2 |
| Body Width (Decimal Inch) | 2.0000 |
| Distance Betw. Button & Bottom Edge (Decimal Inch) | 0.4375 |
| Distance Betw. Button & Bottom Edge (Inch) | 7/16 |
| Distance Between Button & Top Edge (Decimal Inch) | 0.7500 |
| Distance Between Button & Top Edge (Inch) | 3/4 |
| Mounting Slot Length (Decimal Inch) | 0.6900 |
| Mounting Slot Width (Decimal Inch) | 0.2570 |
| Base Thickness (Inch) | 1/4 |
| Base Thickness (Decimal Inch) | 0.2500 |
| Body Material | Zinc Aluminum Alloy |
| Stop Material | Low Carbon Steel |
