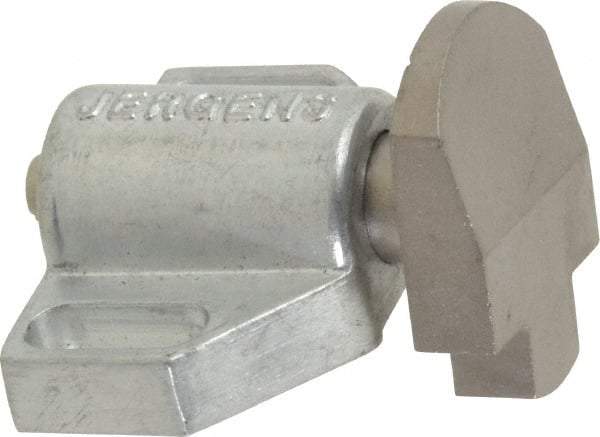

Jergens - 1-1/2" Body Width x 1" Body Len, 3/16" Stroke Len, 1-1/8" Btw Mt Hole Ctrs, Tang Square Spring Locating Stop - 14 Lb Mid End Force, 7/8" Stop Head Width x 1-1/8" Stop Head Height
Item #: 82436072
Brand: Jergens
Model #: 36105
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Stop Head Width (Inch) | 7/8 |
| Stop Head Width (Decimal Inch) | 0.8750 |
| Stroke Length (Decimal Inch) | 0.1875 |
| Stroke Length (Inch) | 3/16 |
| Base Width (Inch) | 1-1/2 |
| Body Length (Inch) | 1 |
| Body Length (Decimal Inch) | 1.0000 |
| Stop Head Height (Inch) | 1-1/8 |
| Stop Head Height (Decimal Inch) | 1.1250 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.1250 |
| Distance Between Mount Hole Centers (Inch) | 1-1/8 |
| Tang Profile | Tang |
| Middle End Force (Lb.) | 14.00 |
| Middle End Force (kg) | 6.35 |
| Tang Width (Inch) | 3/8 |
| Tang Width (Decimal Inch) | 0.3750 |
| Tang Length (Decimal Inch) | 0.2656 |
| Tang Length (Inch) | 17/64 |
| Stop Head Thickness (Inch) | 1/4 |
| Stop Head Thickness (Decimal Inch) | 0.2500 |
| Body Width (Inch) | 1-1/2 |
| Body Width (Decimal Inch) | 1.5000 |
| Distance Betw. Button & Bottom Edge (Decimal Inch) | 0.3125 |
| Distance Betw. Button & Bottom Edge (Inch) | 5/16 |
| Distance Between Button & Top Edge (Decimal Inch) | 0.5625 |
| Distance Between Button & Top Edge (Inch) | 9/16 |
| Mounting Slot Length (Decimal Inch) | 0.5400 |
| Mounting Slot Width (Inch) | 13/64 |
| Mounting Slot Width (Decimal Inch) | 0.2031 |
| Base Thickness (Inch) | 1/4 |
| Base Thickness (Decimal Inch) | 0.2500 |
| Body Material | Zinc Aluminum Alloy |
| Stop Material | Low Carbon Steel |
