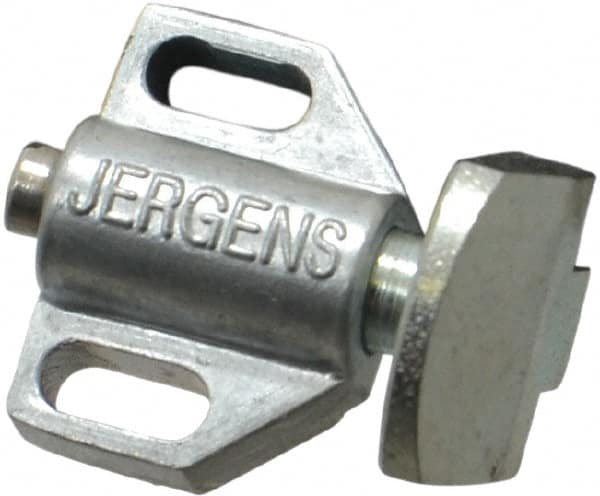

Jergens - 15/16" Body Width x 11/16" Body Len, 1/8" Stroke Len, 21/32" Btw Mt Hole Ctrs, Tang Square Spring Locating Stop - 10 Lb Mid End Force, 5/8" Stop Head Width x 7/8" Stop Head Height
Item #: 82436064
Brand: Jergens
Model #: 36104
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Stop Head Width (Inch) | 5/8 |
| Stop Head Width (Decimal Inch) | 0.6250 |
| Stroke Length (Decimal Inch) | 0.1250 |
| Stroke Length (Inch) | 1/8 |
| Base Width (Inch) | 15/16 |
| Body Length (Inch) | 11/16 |
| Body Length (Decimal Inch) | 0.6875 |
| Stop Head Height (Inch) | 7/8 |
| Stop Head Height (Decimal Inch) | 0.8750 |
| Distance Between Mount Hole Centers (Decimal Inch) | 0.6563 |
| Distance Between Mount Hole Centers (Inch) | 21/32 |
| Tang Profile | Tang |
| Middle End Force (Lb.) | 10.00 |
| Middle End Force (kg) | 4.54 |
| Tang Width (Inch) | 1/4 |
| Tang Width (Decimal Inch) | 0.2500 |
| Tang Length (Decimal Inch) | 0.2344 |
| Tang Length (Inch) | 15/64 |
| Stop Head Thickness (Inch) | 3/16 |
| Stop Head Thickness (Decimal Inch) | 0.1875 |
| Body Width (Inch) | 15/16 |
| Body Width (Decimal Inch) | 0.9375 |
| Distance Betw. Button & Bottom Edge (Decimal Inch) | 0.2188 |
| Distance Betw. Button & Bottom Edge (Inch) | 7/32 |
| Distance Between Button & Top Edge (Decimal Inch) | 0.4375 |
| Distance Between Button & Top Edge (Inch) | 7/16 |
| Mounting Slot Length (Inch) | 23/64 |
| Mounting Slot Length (Decimal Inch) | 0.3594 |
| Mounting Slot Width (Inch) | 9/64 |
| Mounting Slot Width (Decimal Inch) | 0.1406 |
| Base Thickness (Inch) | 3/16 |
| Base Thickness (Decimal Inch) | 0.1875 |
| Body Material | Zinc Aluminum Alloy |
| Stop Material | Low Carbon Steel |
