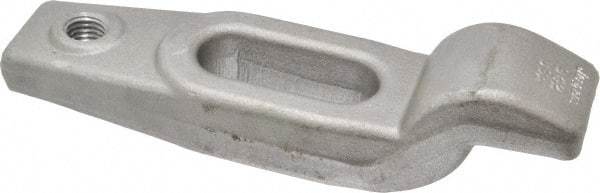

Jergens - 8" OAL x 2-1/8" Overall Width x 2-1/16" Overall Height, Gooseneck Clamp - Grade C-1030/C-1035 Forged Steel, 9/16" Nose Height x 1-1/2" Nose Width, 1-5/8" Slot Len x 13/16" Slot Width, 1-1/4" Neck Len
Item #: 82430489
Brand: Jergens
Model #: 37216
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Overall Length (Inch) | 8 |
| Overall Height (Inch) | 2-1/16 |
| Overall Width (Inch) | 2-1/8 |
| Nose Height (Inch) | 9/16 |
| Nose Width (Inch) | 1-1/2 |
| Slot Length (Inch) | 1-5/8 |
| Slot Width (Inch) | 13/16 |
| Neck Length (Inch) | 1-1/4 |
| Tapped | Yes |
| Material | Forged Steel |
| Strap Style | Gooseneck Clamps Tapped - Screw Not Included |
| Height Under Neck (Inch) | 1-1/8 |
| Stud Size (Inch) | 3/4 |
| Tap Size | 5/8-11 |
| Travel (Inch) | 1-5/8 |
| Tapered | Yes |
| Base Height (Inch) | 1-1/8 |
| Material Grade | C-1030/C-1035 |
| Tapped Depth (Inch) | 1 |
| Tapered Height (Inch) | 3/4 |
| End to Stud Center (Inch) | 3-3/16 |
| End to Hole Center (Inch) | 1 |
