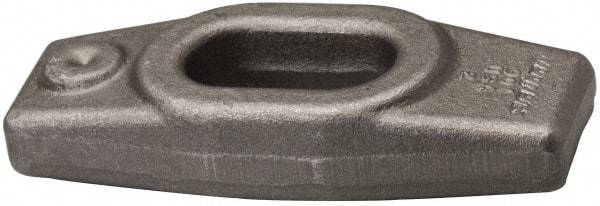

Jergens - 7/8" Stud, 2-3/4" Travel, 10" OAL x 2-1/2" Overall Width x 1-3/8" Overall Height, Heel Clamp - Grade C-1030/C-1035 Forged Steel, 2-3/4" Long x 15/16" Wide Slot, 3-5/8" Length x 1-3/4" Width x 15/16" Tapered Height, Tapped
Item #: 82430208
Brand: Jergens
Model #: 37208
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Overall Length (Inch) | 10 |
| Overall Height (Inch) | 1-3/8 |
| Overall Width (Inch) | 2-1/2 |
| Travel (Inch) | 2-3/4 |
| Slot Length (Inch) | 2-3/4 |
| Slot Width (Inch) | 15/16 |
| Tapered | Yes |
| Strap Style | Heel Clamp - Tapped |
| Tapped | Yes |
| Stud Size (mm) | M20 |
| Stud Size (Inch) | 7/8 |
| Tap Size | 7/8-9 |
| Material | Forged Steel |
| Material Grade | C-1030/C-1035 |
| Tapped Depth (Inch) | 7/8 |
| Tapered Height (Inch) | 15/16 |
| Tapered Width (Inch) | 1-3/4 |
| Tapered Length (Inch) | 3-5/8 |
| End to Stud Center (Inch) | 3-5/8 |
| End to Hole Center (Inch) | 7/8 |
