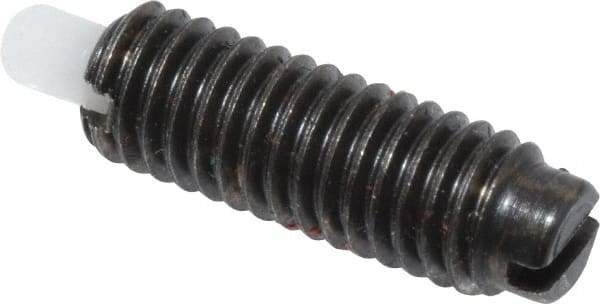

Jergens - 10-32, 9/16" Thread Length, 1/8" Plunger Projection, Steel Threaded Spring Plunger - 0.093" Max Plunger Diam, 9/16" Plunger Length, 0.3 Lb Init End Force, 3 Lb Final End Force
Item #: 82412545
Brand: Jergens
Model #: 30703
Exact Tooling IR#: 04
Features and Benefits
Delrin is a thermoplastic resin that combines the properties of metal and plastic. It offers strength, hardness, dimensional stability, fuel and abrasion resistance as well as has low friction.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Thread Size | 10-32 |
| Thread Length (Inch) | 9/16 |
| Nose Material | Delrin |
| Body Material | Steel |
| Maximum Plunger Diameter (Decimal Inch) | 0.0930 |
| Plunger Projection (Inch) | 1/8 |
| Locking Element | Yes |
| Body Length (Inch) | 9/16 |
| Plunger Length Type | Short |
| Plunger Length (Inch) | 9/16 |
| Final End Force (Lb.) | 3.00 |
| Initial End Force (Lb.) | 0.30 |
| Finish/Coating | Black Oxide |
